| Brand | Wintrone |
|---|---|

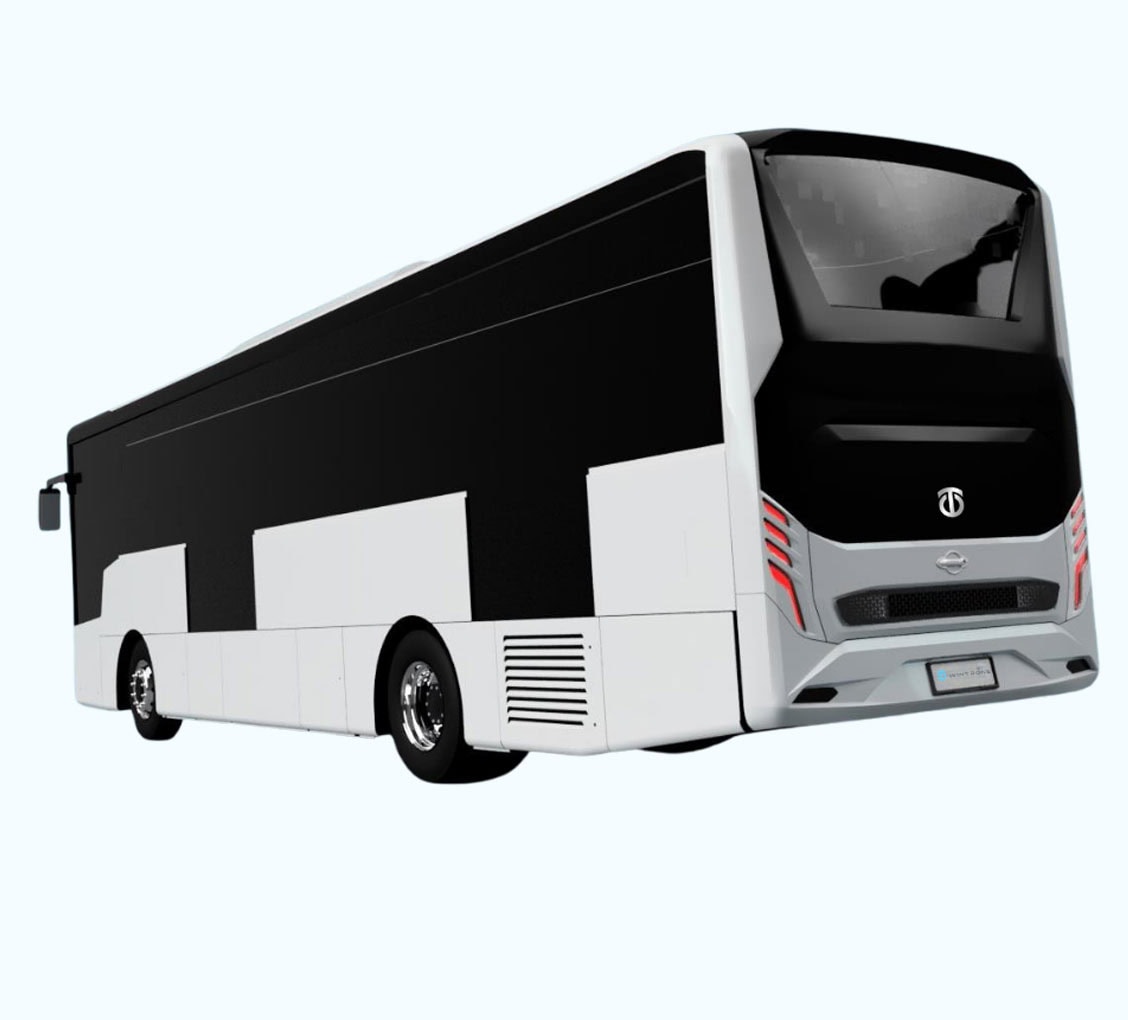

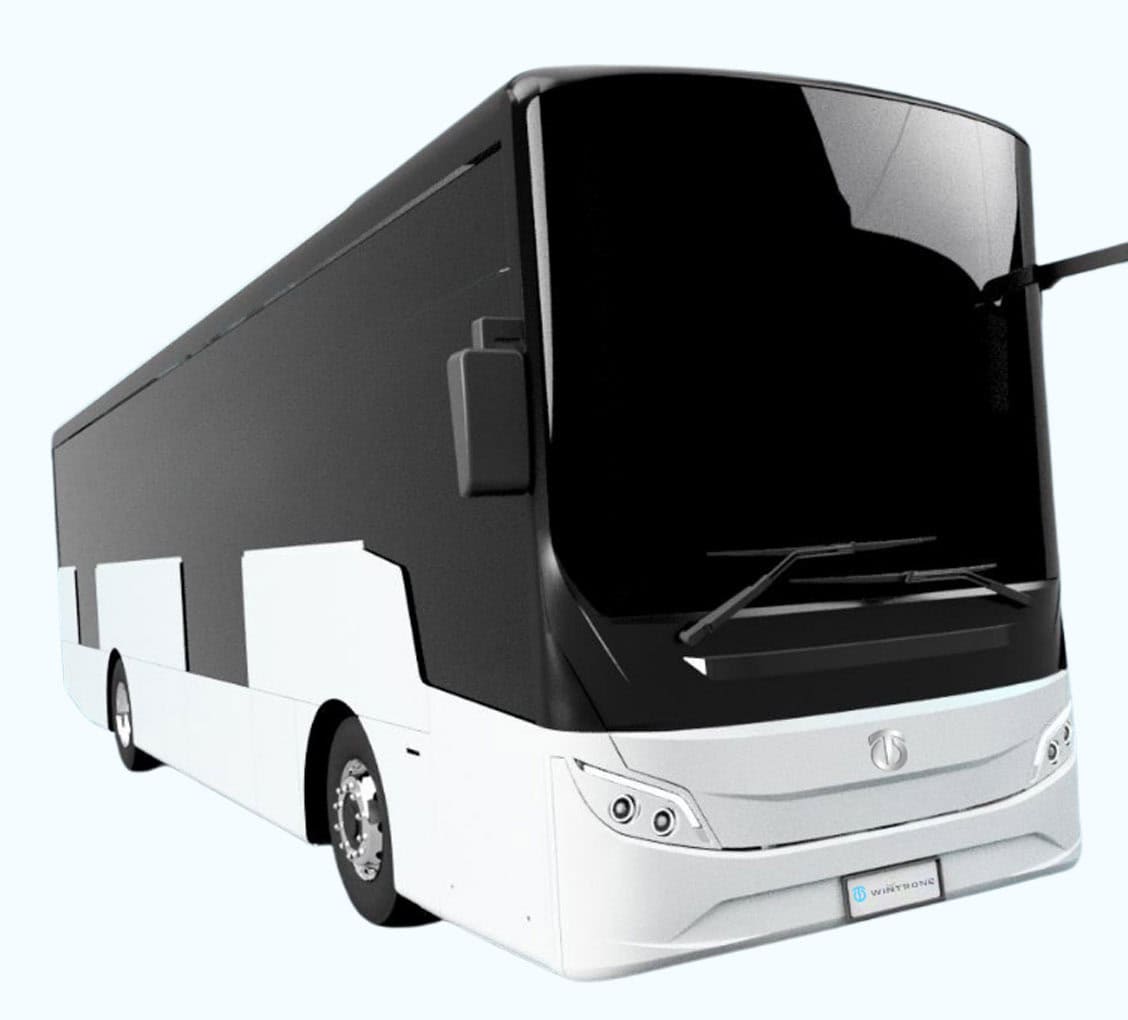

| Type | Orionis 12 HD |
| Classification | Electric Bus 12 Meters High Deck Floor |
| Max. Speed | 70 km/h |
| Max. Gradeability | Up to 17% |
| Mileage Range | Up to 370 km / Charge |
| Charging Time | ± 4 Hours (20–100%) |
| Curb. Weight | 13,740 kg |
| Charging Type | CCS2 |
| Length / Width / Height | 11,910 x 2,500 x 3,785 mm |
|---|---|
| Wheel Base | 5,890 mm |
| Front / Rear Overhang | 2,470 / 3,550 mm |
| Departure Angle | > 8° |
| Ground Clearance | 170 mm |
| Turning Radius | 10,160 mm |
| Structure | Space Frame |
| Suspensions | Suspension Front (2), Rear (4) |
| Brake | Four-Wheel Disc Brake with ABS |
| Tyres | 11 R 22.5 148/145 L |
| Steering | Hydraulic Power Steering System |
| Type | Lithium Ferro Phosphate |
|---|---|
| Capacity | 370 kWh |
| Cooling | Liquid Cooling |
| Type | Permanent Magnet Synchronous Motor / PMSM |
|---|---|
| Power Rated / Peak | 195 / 350 kW |
| Max Torque | 3,500 Nm |
| Type | Roof Mounted AC System |
|---|---|
| Cooling Capacity | 35 kW |
| Port | CCS2 |
|---|---|
| Charger Capacity | Up to 120 kW |
| Charging Time | 4 - 5 Hours |
| Input Voltage | 380–410 VAC 3 Phase |
| Input Frequency | 50/60 Hz |
| Tyres | 11 R 22.5 148/145 L |
|---|
| Capacity | 28 Seats + 2 Folding Seats |
|---|---|
| Door Passenger | Double Inwards Pneumatic 2 Center Door on L&R Side 2 Rear Door on L&R Side |
