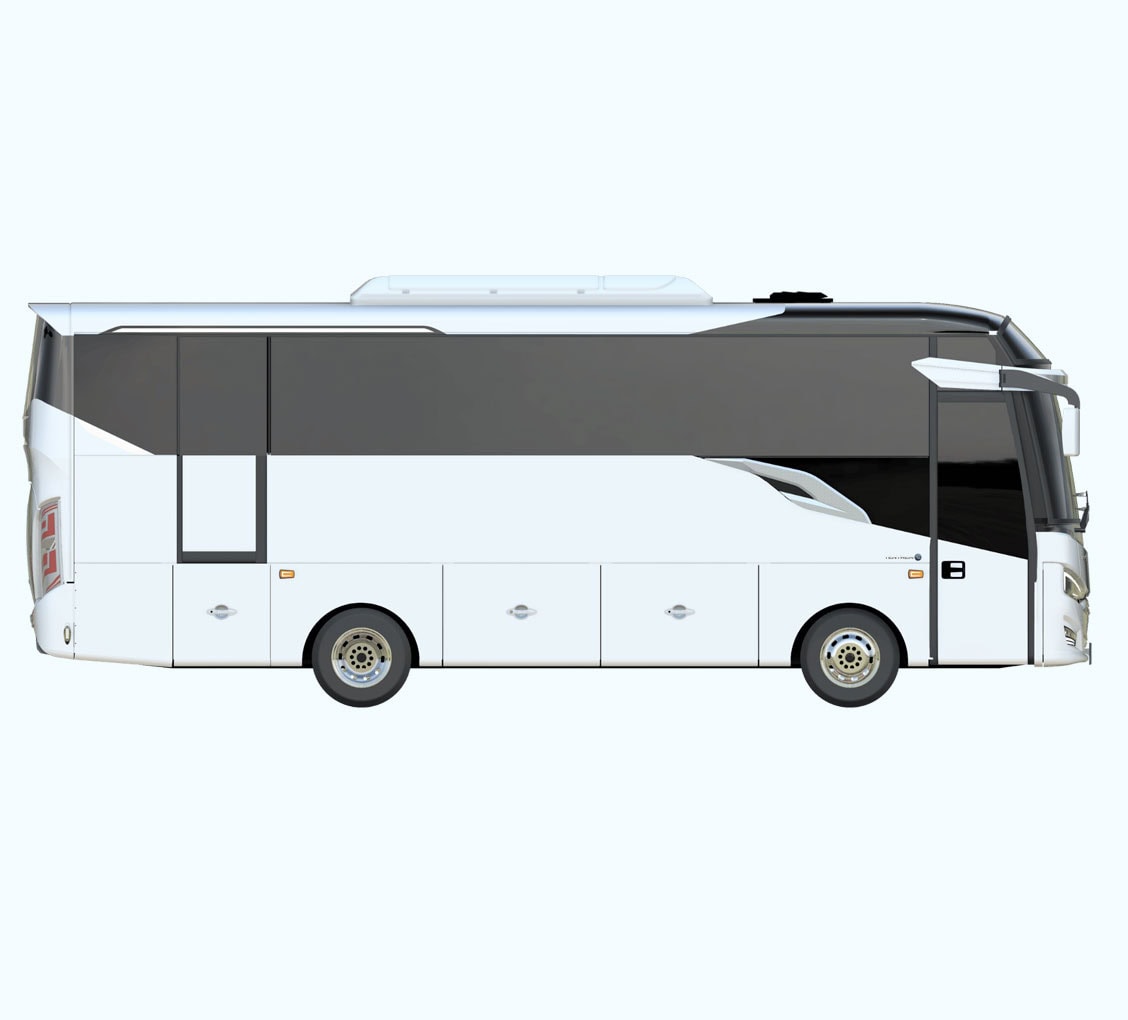

| Brand | Wintrone |
|---|---|
| Product Type | Orionis 8 NV A/T 4x2 |
| Product Classification | Electric Bus 8 Meter |
| Application | Shuttle Bus |
| Range | Up to 160 km |
| Max Speed | 80 km/h |
| Max Gradeability | Up to 17% |
| Brake | Four Wheel Disc Brake With ABS |
| Length | 8,081 mm |
|---|---|
| Width | 2,100 mm |
| Height | 3,480 mm |
| Wheelbase | 3,853 mm |
| Front Overhang | 1,820 mm |
| Rear Overhang | 2,408 mm |
| Approach Angle | 11° |
| Departure Angle | 11° |
| Ground Clearance | 150 mm |
| Turning Radius | 7,025 mm |
| Suspension | Spring |
| Curb Weight | 6,600 kg |
|---|---|
| Gross Weight | 8,000 kg |
| Type | Lithium Ferro Phosphate / LiFePO4 |
|---|---|
| Capacity | 132 kWh |
| Cooling | Liquid Cooling |
| Type | Permanent Magnet Synchronous Motor / PMSM |
|---|---|
| Power Rated / Peak | 100 / 170 kW |
| Max Torque | Up to 1,900 Nm |
| Type | Roof Mounted AC System |
|---|---|
| Cooling Capacity | 18 kW - 15,500 kcal/h - 61,420 BTU/h |
| Tire Size | 215 / 75 R17.5 |
|---|

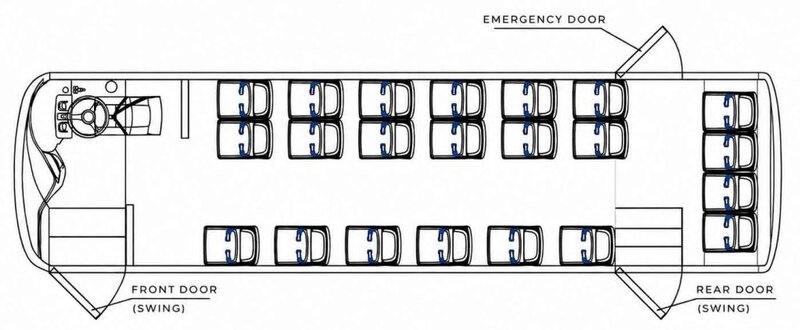

| Capacity | Up to 28 Passengers |
|---|---|
| Passenger Door | A. 1 Front Left Side Swing Door B. 1 Rear Left Side Swing Door |
| Passenger Window | Sunergy Clear 6 mm |
| Port | CCS 2 |
|---|---|
| Charger | DC Charger |
| DC Charger | Floor-Mounted Dual Guns DC Charging |
| Charger Capacity | Up to 42 kW each gun |
| Charging Time | Approx. 2 hours / 0–100% |
| Voltage Rating | 560 - 580 ±10% VDC |
