Orionis 8VL Sarvatra is an 8-meter low-entry high deck electric bus designed for efficient shuttle and urban mobility operations. Powered by a 123 kWh LiFePO4 battery, it delivers a driving range of up to 150 km, with a maximum speed of 70 km/h and a capacity of up to 23 passengers. Equipped with liquid cooling battery technology, PMSM motor, air suspension, roof-mounted AC system, and CCS 2 DC charging, this electric bus offers a comfortable, reliable, and sustainable transportation solution for daily fleet operations.
| Brand | Wintrone |
|---|---|
| Product Type | Orionis 8 VL - Low Entry High Deck A/T 4x2 |
| Product Classification | Electric Bus 8 Meter |
| Application | Shuttle Bus |
| Range | Up to 150 km |
| Max Speed | 70 km/h |
| Max Gradeability | Up to 17% |
| Brake | Four Wheel Disc Brake With ABS |
| Length | 7,990 mm |
|---|---|
| Width | 2,100 mm |
| Height | 3,398 mm |
| Wheelbase | 3,850 mm |
| Front Overhang | 1,740 mm |
| Rear Overhang | 2,400 mm |
| Approach Angle | 11° |
| Departure Angle | 9° |
| Ground Clearance | 150 mm |
| Turning Radius | 7,025 mm |
| Suspension | Air Suspension |
| Curb Weight | 6,600 kg |
|---|---|
| Gross Weight | 8,000 kg |
| Type | Lithium Ferro Phosphate / LiFePO4 |
|---|---|
| Capacity | 123 kWh |
| Cooling | Liquid Cooling |
| Type | Permanent Magnet Synchronous Motor / PMSM |
|---|---|
| Power Rated / Peak | 100 / 170 kW |
| Max Torque | Up to 1,900 Nm |
| Type | Roof Mounted AC System |
|---|---|
| Cooling Capacity | 18 kW - 15,500 kcal/h - 61,420 BTU/h |
| Tire Size | 215 / 75 R17.5 |
|---|
| Capacity | Up to 23 Passengers |
|---|---|

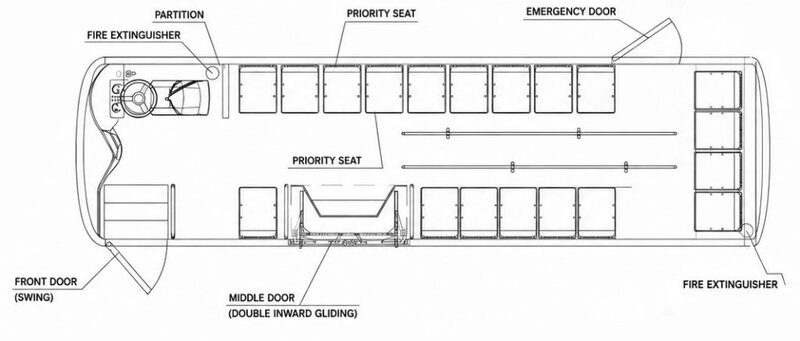

| Passenger Door | A. 1 Front Left Side Swing Door B. 1 Center Left Side Double Inward Pneumatic Low Entry |
| Passenger Window | Sunergy Clear 6 mm |
| Port | CCS 2 |
|---|---|
| Charger | DC Charger |
| DC Charger | Floor-Mounted Dual Guns DC Charging |
| Charger Capacity | Up to 42 kW each gun |
| Charging Time | 3 hours 25 minutes / 0–100% |
| Voltage Rating | 400 ±10% VAC 3 Phase |
