Operating Lamp HE-L700/700 (DX)

Operating Lamp HE-L700/700 (DX)

Category ADN Medical

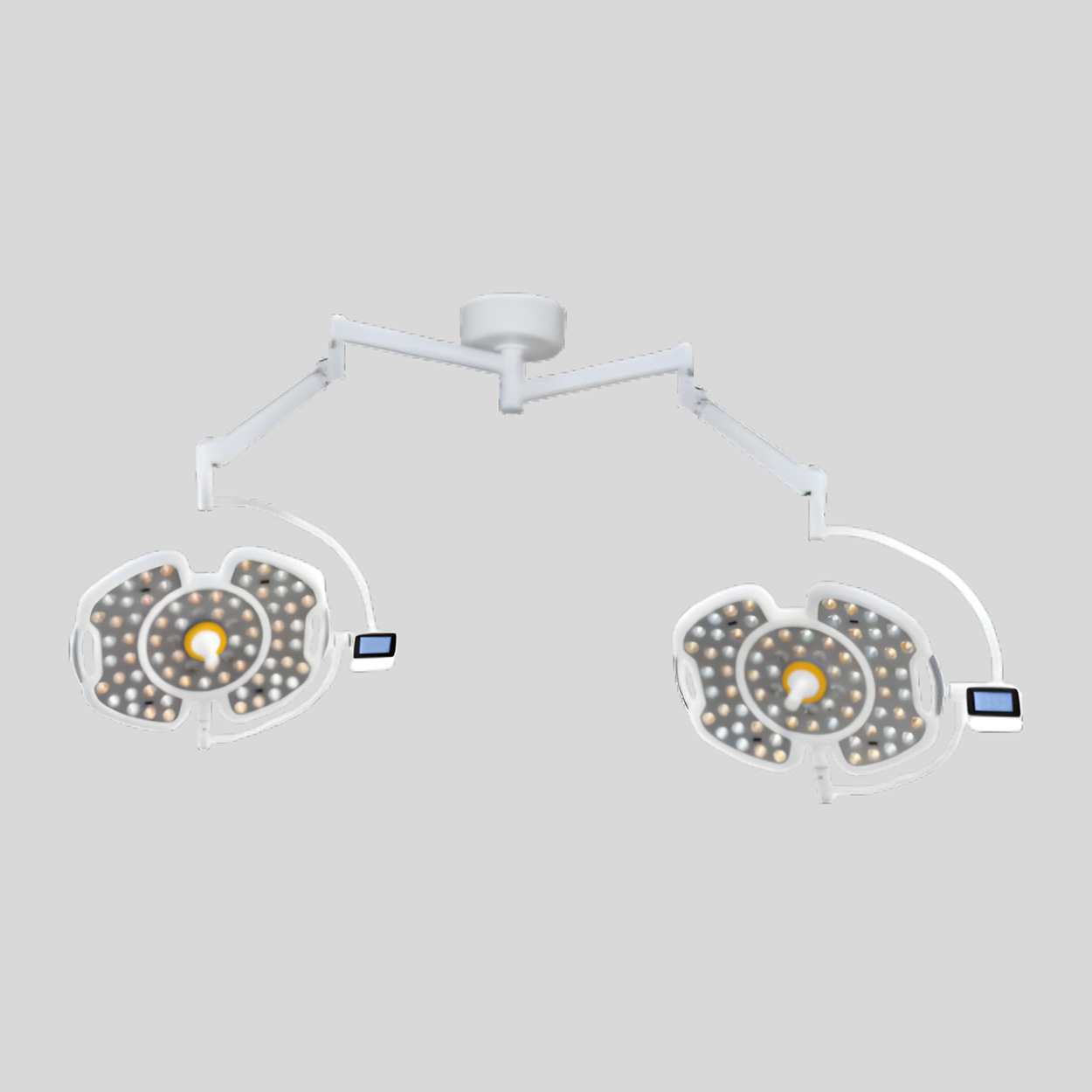

The ADN-L700 / L700 (DX) Surgical Shadowless Lamp is designed to deliver high-performance, stable, and precise illumination for modern operating rooms. Equipped with German OSRAM medical-grade LED chips, the lamp provides excellent brightness, accurate color rendering, and minimal heat generation, ensuring optimal visibility and comfort during surgical procedures. Its ultra-thin butterfly-style lamp panel supports laminar airflow and helps maintain a sterile surgical environment.

Key Features

German OSRAM medical-grade LED chips for stable and high-quality illumination
Shadow compensation technology to maintain uniform lighting during surgery
LCD touch screen control for easy adjustment of lighting settings
Ultra-thin butterfly lamp panel design with excellent laminar airflow compatibility
Imported balance arm system for smooth movement and precise positioning
Low heat emission for improved surgical comfort
Long LED lifespan up to 80,000 hours

Lighting Performance

Illuminance: 40,000 – 160,000 Lux
Color Temperature: 3,500 – 5,500 K
Color Rendering Index (Ra):> 98
Light Beam Depth: 150 cm
Spot Diameter: 20 – 26 cm
Brightness Adjustment: 10% – 100%

Functional Capabilities

Electronic focus adjustment
0–100 level brightness control
0–100 level color temperature adjustment
Shadow compensation function
One-key deep cavity mode
One-key cavity mirror mode
One-key bright mode
One-key normal mode

Technical Specifications

LED Bulbs: 73 pcs (OSRAM)
Lamp Life:> 80,000 hours
Input Power: AC 100–240V, 50/60Hz
Recommended Installation Height: 2.7 – 3.1 m
Temperature Rise (Operator Head):< 1°C

Standard Configuration

Dual 700 surgical lamps
Swivel arm and fixed seat
Balance arm system
Switching power supply
Disinfection handles
Installation tools and accessories
User manual and certificate

Description
